Product Description

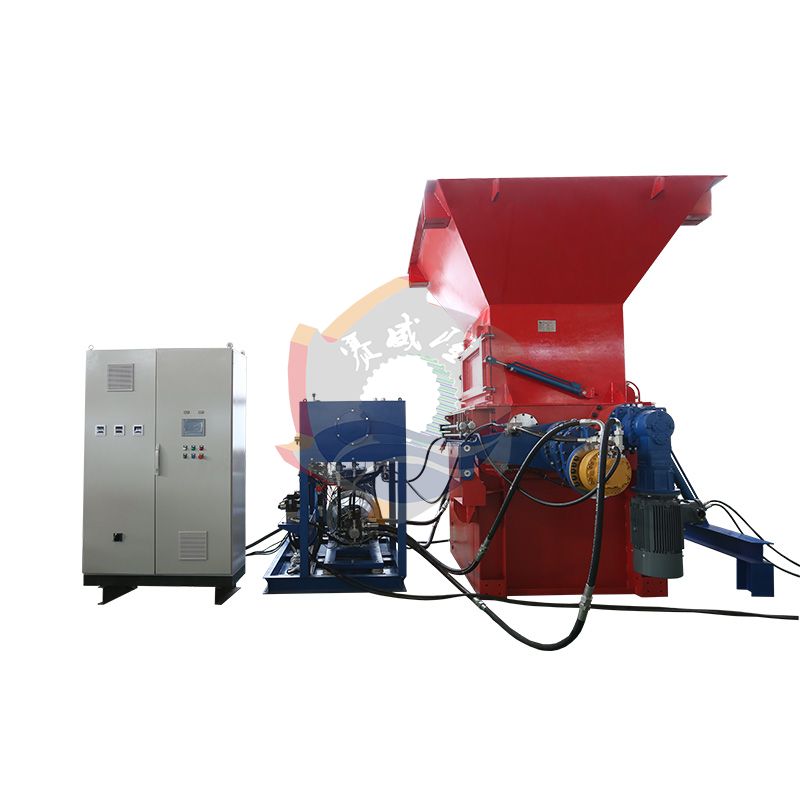

4-shaft rotary shear adopt coordinated hydraulic and electric motor drive, which not only has the effect of high torque and flexible regulation of hydraulic drive, but also retains the advantages of high efficiency and energy saving of electric motor, providing solutions for heavy duty shredding with more even particle size requirements.
 |
 |
Main Technical Parameters
|
|
Overall Dim. (LxWxH,m) |
Size of Shredding Chamber (LxW,m) |
Capacity (t/h) |
Size of Products (mm) |
Installed Power (kW) |
Weight (kg) |
|
RS4-2560HB |
4.8x1.6x1.5 |
1.6x1.6 |
5-15 |
50-100 |
200+90 |
20000 |
|
RS4-1690HB (160) |
4.2x1.9x0.8 |
1.3x1.3 |
3-8 |
30-80 |
160+44 |
9000 |
|
RS4-1690HB (110) |
4.2x1.9x0.8 |
1.3x1.3 |
3-5 |
30-80 |
110+44 |
9000 |
|
RS3-1300HB |
3.6x1.8x0.9 |
1.3x1.0 |
3-5 |
30-80 |
160+45 |
8000 |
| RS4-3400EQ | 5.73x2.72x1.1 | 2.0x1.7 | 5-8 | 20-100 | 2x200+2x132 | 39000 |
| RS4-2720EQ | 5.37x2.72x1.1 | 1.7x1.6 | 3-5 | 20-100 | 2x160+2x110 | 35000 |
Note: The above data are standard configurations for typical models and can’t be taken as the only principle for type/model selection, and such facts as kind of wastes and their states, type of package, expected size after shredding etc. should also be taken into consideration, actual data are subject to adjustment according to specific requirements. More models and configurations are for inquiry and for face-to-face discussion.
