Product Description

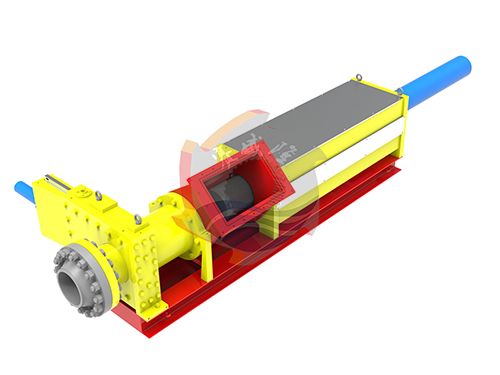

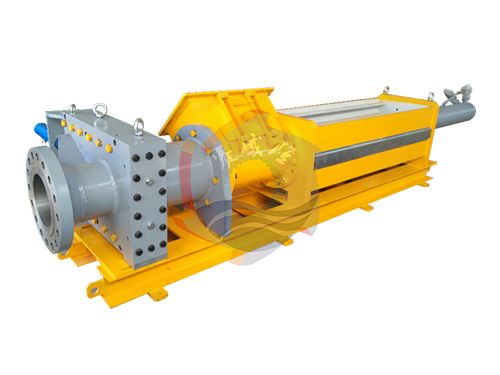

The piston forwarder (usually a piston pump) delivers the thoroughly blended slurry from the mixer through an enclosed high-pressure piping system into a rotary kiln or a cement calcinator for final thermal disposal.
• High-Efficiency Pumping: Our piston pumps deliver thoroughly blended slurry through enclosed high-pressure piping systems, ensuring efficient and continuous material transfer.
• Durable Construction: Built with robust materials, our pumps and feeders are designed to withstand the demanding conditions of waste processing environments, ensuring longevity and minimal maintenance.
• Versatile Applications: Suitable for various industries, including municipal waste treatment, industrial waste processing, and energy production, our equipment adapts to diverse operational requirements.
• Safety and Compliance: Engineered to meet international safety standards, our systems ensure safe operation and compliance with environmental regulations.
 |
 |
|
|
Overall Dim. (LxWxH,m) |
Piston Dia. (mm) |
Piston Stroke (mm) |
Capacity (m³/h) |
Installed Power (kW) |
Weight (kg) |
|
SLD35SP |
6.4x2.3x1.3 |
350 |
1400 |
10-15 |
110-200 |
7000 |
|
SLD35SPs |
4.8x2.3x1.3 |
350 |
1000 |
6-12 |
90-160 |
5500 |
|
SLD25SP |
4.8x1.8x0.8 |
250 |
1000 |
5-10 |
37-90 |
3500 |
|
SLD15SP |
4.5x1.5x0.6 |
150 |
1000 |
3-5 |
11-22 |
2500 |
Note: The above data are standard configurations for typical models and can’t be taken as the only principle for type / model selection, such facts as the viscosity / liquid ratio of the mixture and the needed distance of delivery should also be taken into consideration, actual data are subject to adjustment according to specific requirements. More models and configurations are for inquiry and for face-to-face discussion.
• Municipal Waste Treatment: Efficiently transport and process sewage sludge, facilitating effective waste management in urban settings.
• Industrial Waste Processing: Handle high-viscosity waste materials in manufacturing plants, ensuring smooth operations and compliance with environmental standards.
• Energy Production: Feed prepared waste materials into combustion systems, such as rotary kilns or cement calcinators, for energy recovery or disposal.
