Product Description

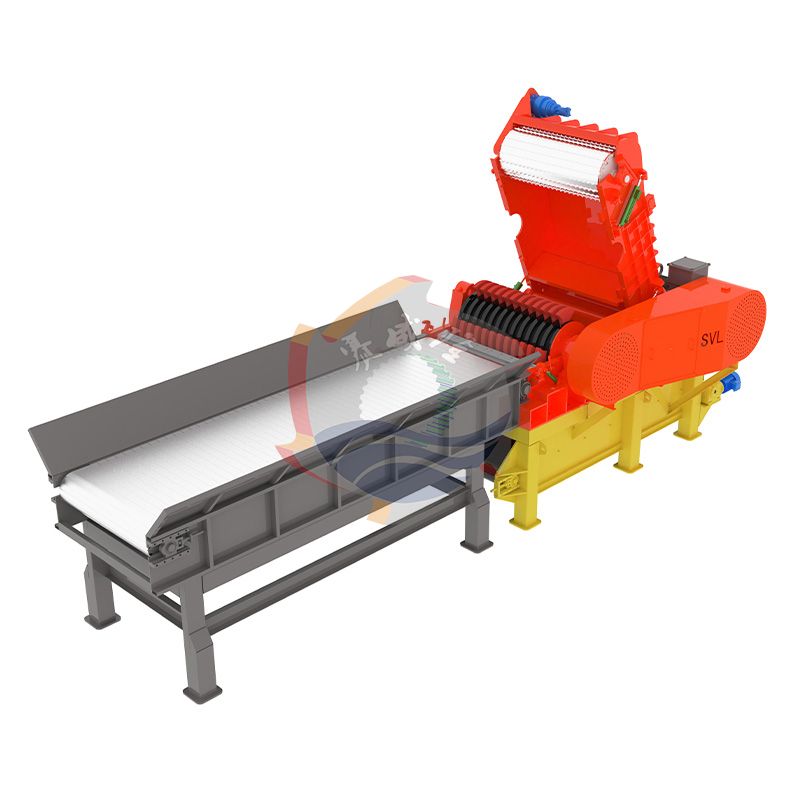

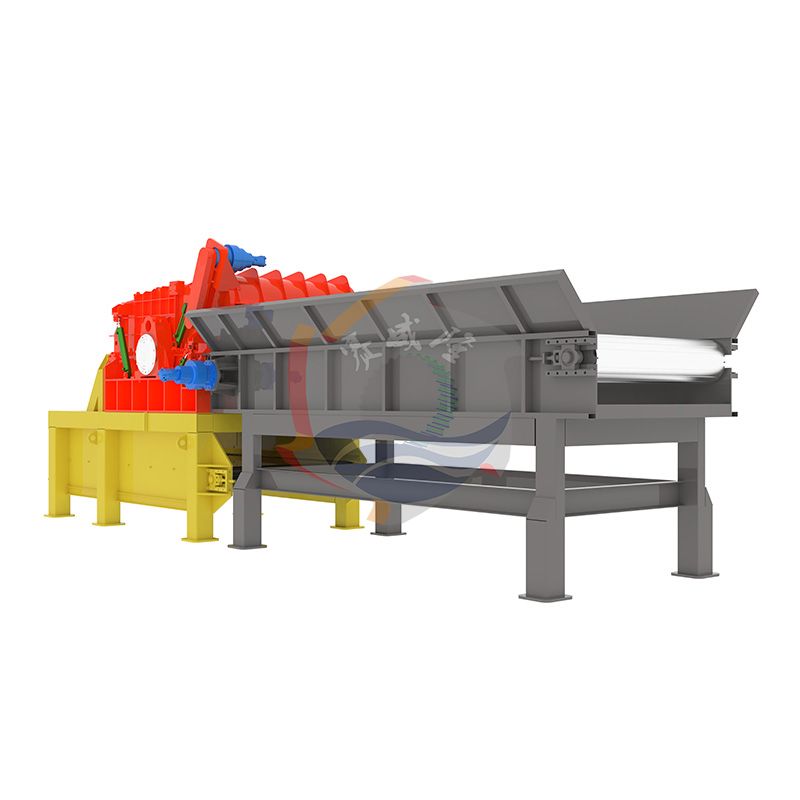

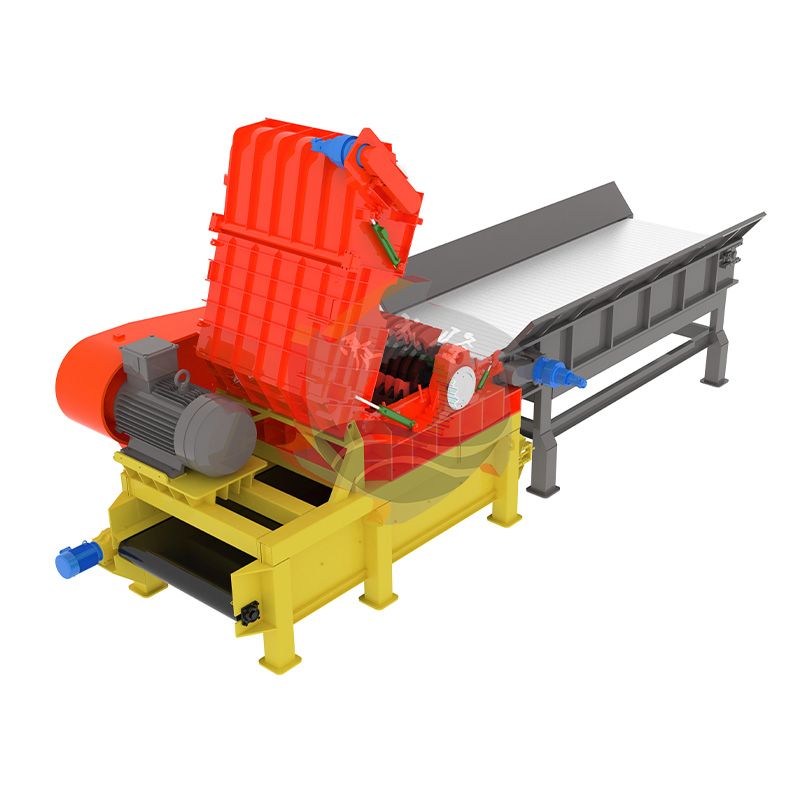

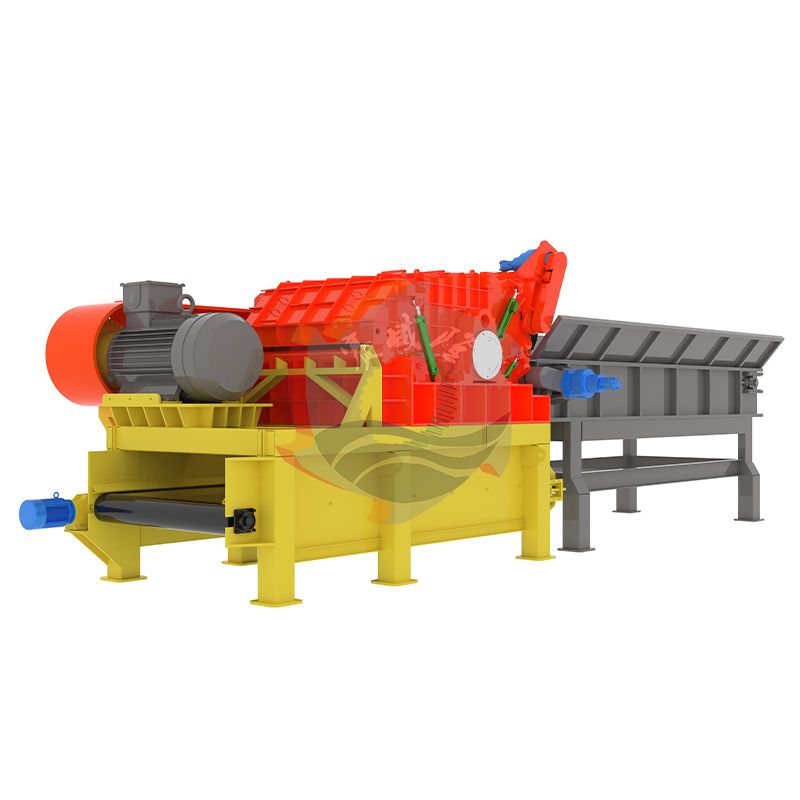

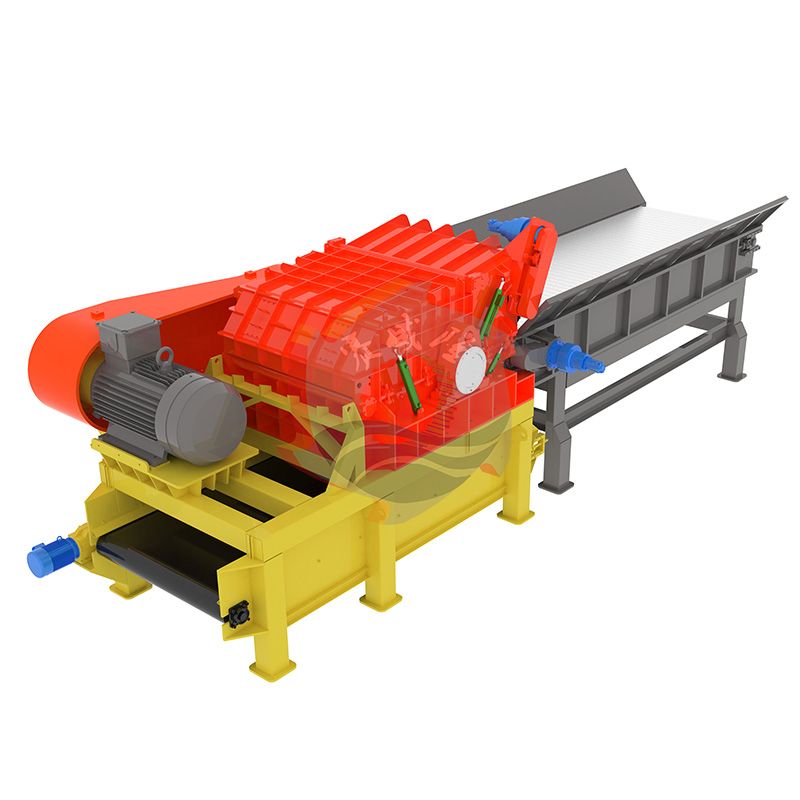

Wastes like tree branches, bark, tree trunks, roots, waste wood, waste furniture, straw, other biomass or common industrial solid wastes can be crushed according to the specific needs by this series of hammer mill. They are used for fuel preparation in biomass fuel plant, electric power plant and cogeneration unit. The above wastes can be broken and processed to the required size (sieve plate size can be customized) accordingly, and. to be lumped or packaged for transportation.
 |
 |
Main Technical Parameters
|
|
Overall Dim. (LxWxH,m) |
Rotor Dia. (mm) |
Rotor Length mm |
Capacity (t/h) |
Size of Products (mm) |
Installed Power (kW) |
Weight (kg) |
|
HM-1018W |
9.2x3.4x4.6 |
1000 |
1800 |
10-20 |
30-100 |
315 |
17000 |
|
HM-1018H |
9.2x3.4x4.6 |
1000 |
1800 |
10-20 |
30-100 |
280 |
17000 |
|
HM-1015W |
9.2x3.4x4.6 |
1000 |
1500 |
5-15 |
30-100 |
280 |
17000 |
|
HM-1015H |
9.2x3.4x4.6 |
1000 |
1500 |
5-15 |
30-100 |
250 |
17000 |
Note: The above data are standard configurations for typical models and can’t be taken as the only principle for type/model selection, and such facts as kind of wastes and their states, type of package, expected size after shredding etc. should also be taken into consideration, actual data are subject to adjustment according to specific requirements. More models and configurations are for inquiry and for face-to-face discussion.
