Product Description

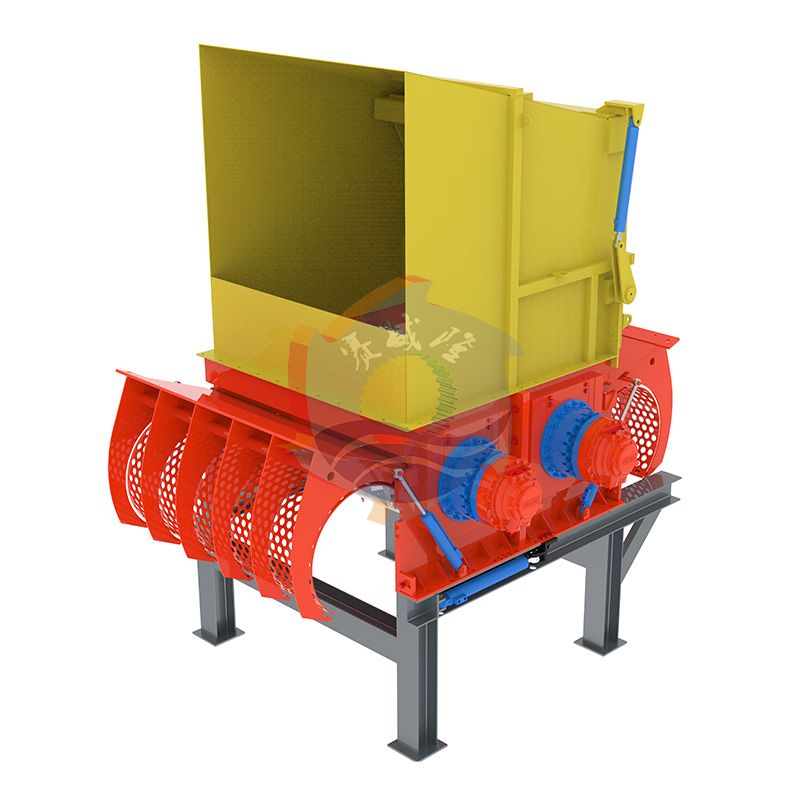

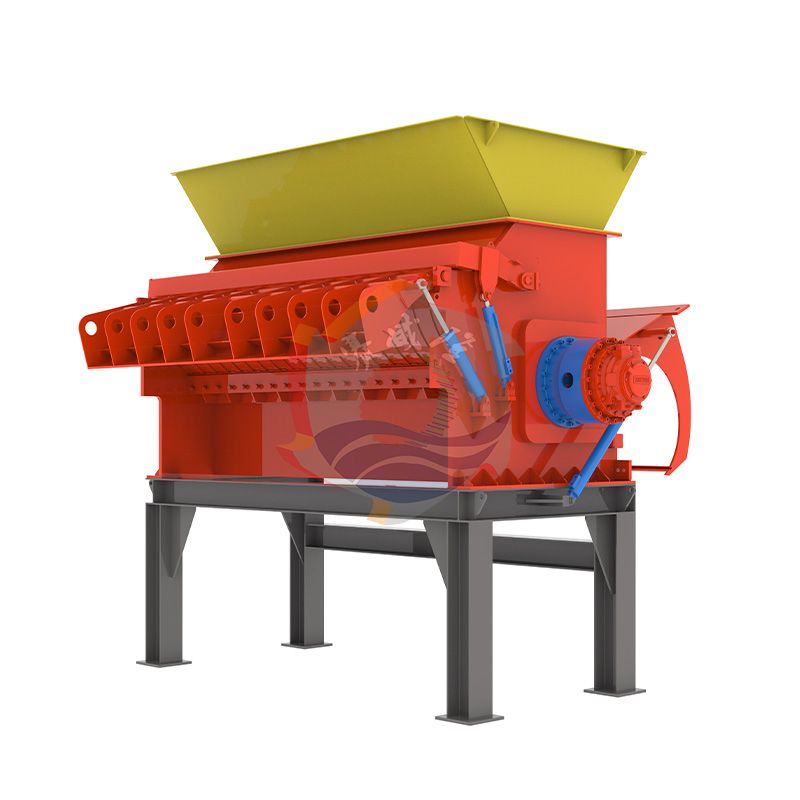

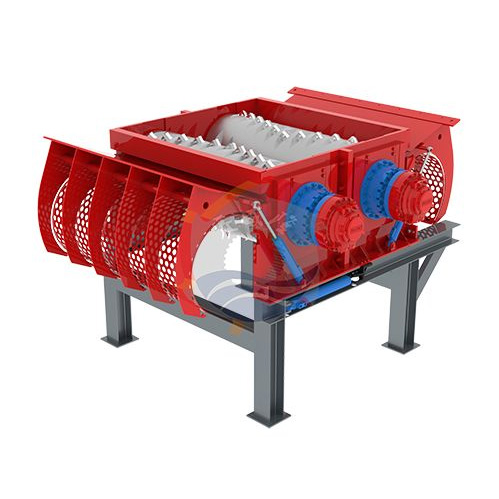

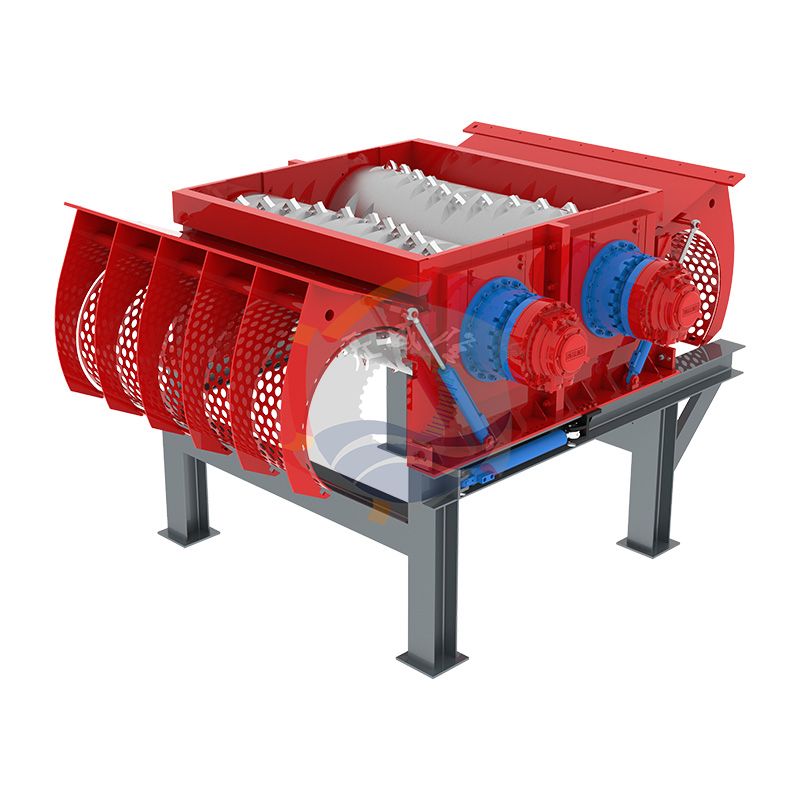

The SVL FS series of fine shredder are equipped with modularized rotating / stationary knife cutting assembly specially designed by SVL and high efficient feeding device, and are very suitable for shredding of such waste materials as waste textile, big bags, fabrics, rubbers and plastics, and etc...
 |
 |
Main Technical Parameters
|
|
Overall Dim. (LxWxH,m) |
Size of Shredding Chamber (LxW,m) |
Capacity (t/h) |
Size of Products (mm) |
Installed Power (kW) |
Weight (kg) |
|
FS-8030HB |
4.5x2.9x3.7 |
3.0x0.9 |
10-15 |
30-100 |
2x200 |
20000 |
|
FS-8025HB |
3.7x2.9x3.7 |
2.5x0.9 |
8-12 |
30-100 |
2x160 |
18000 |
|
FS-8020HM |
3.1x2.1x3.7 |
2.0x0.9 |
5-10 |
30-100 |
315 |
15000 |
|
FS-8025EB |
4.5x2.9x3.7 |
2.5x0.9 |
8-10 |
30-100 |
2x160 |
18000 |
|
FS-8020EB |
3.7x2.9x3.7 |
2.0x0.9 |
5-10 |
30-100 |
2x132 |
15000 |
|
FS-8015HM |
3.2x2.6x3.9 |
1.5x0.9 |
5-8 |
30-100 |
200-280 |
13000 |
|
FS-4812EM |
3.2x2.5x3.6 |
1.2x0.6 |
3-5 |
30-80 |
132/160 |
9000 |
Note: The above data are standard configurations for typical models and can’t be taken as the only principle for type/model selection, and such facts as kind of wastes and their states, type of package, expected size after shredding etc. should also be taken into consideration, actual data are subject to adjustment according to specific requirements. More models and configurations are for inquiry and for face-to-face discussion.
