Product Description

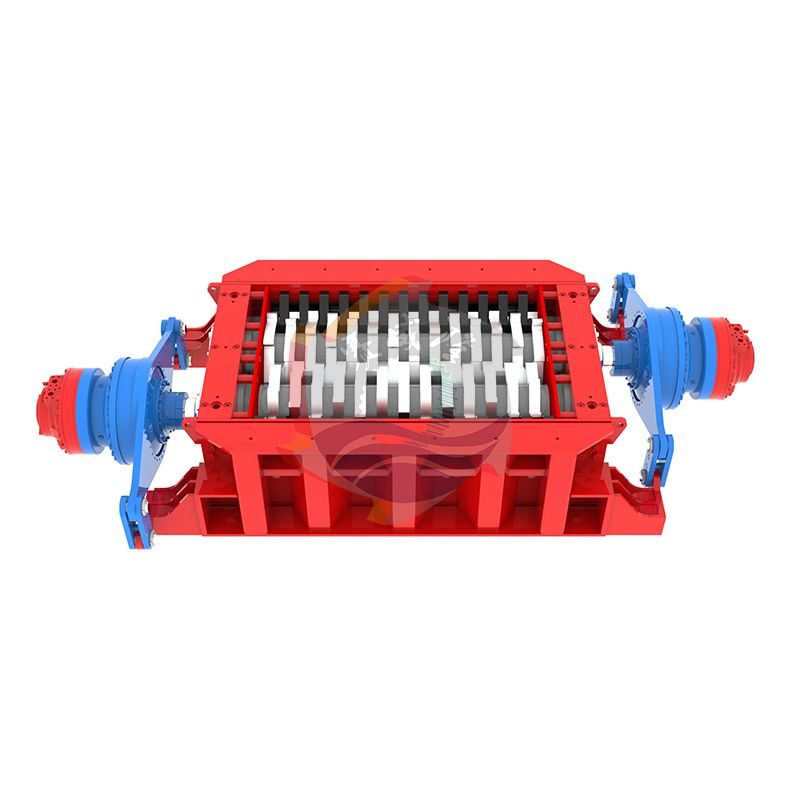

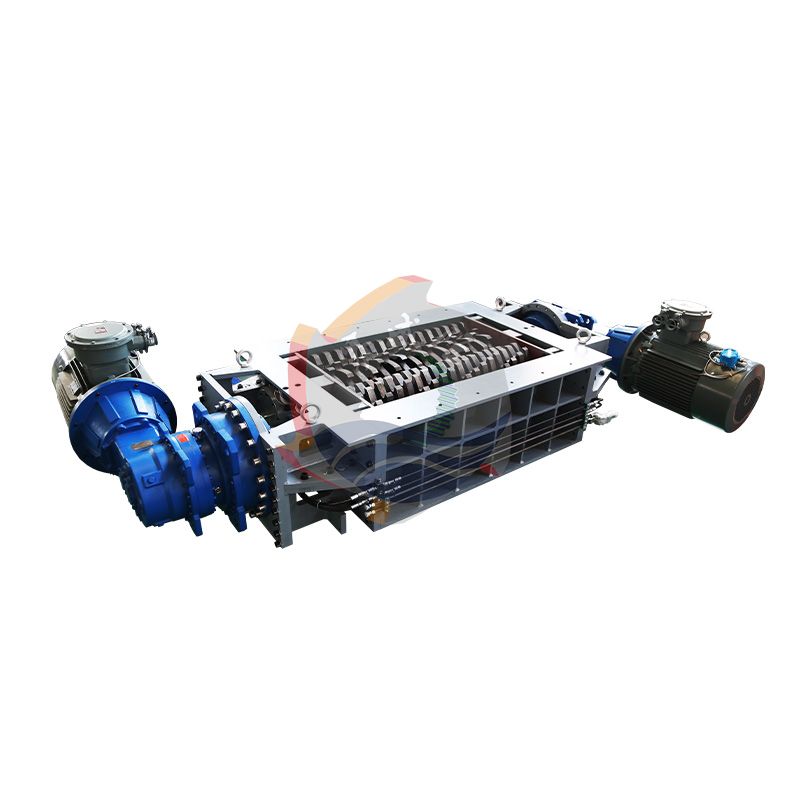

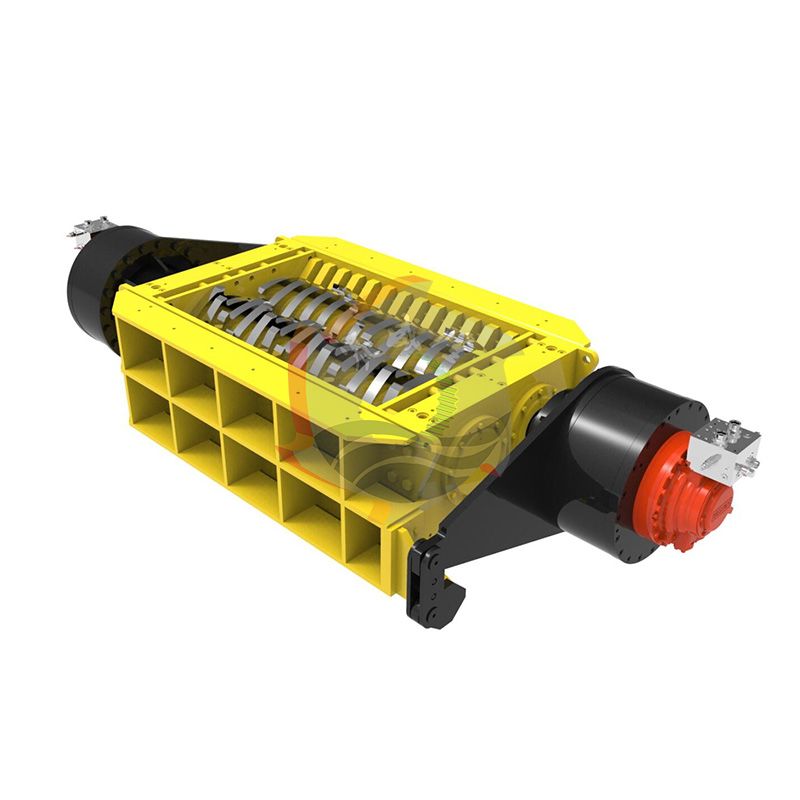

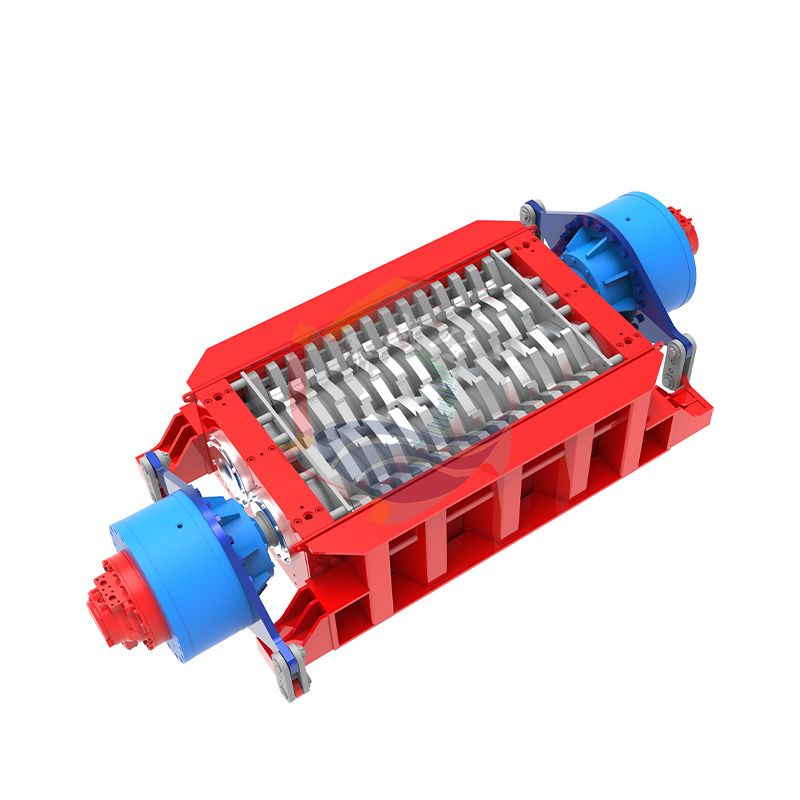

Rotary shear are usually used for shredding pretreatment of industrial/hazardous wastes before incineration in rotary kiln. Wastes packed in drums, in containers or in bulk are shredded by the rotary shear by cutting, tearing and breaking of the 2 rotors of the machine, the size of the shredded wastes is relatively small and even. The hydraulically driven rotary shears feature in low speed and high torque, and are extensively suitable for various kinds of wastes, and more ever, safer in operation with comparison to the high-speed crushers.
 |
 |
Main Technical Parameters
|
|
Overall Dim. (LxWxH,m) |
Size of Shredding Chamber (LxW,m) |
Capacity (t/h) |
Size of Products (mm) |
Installed Power (kW) |
Weight (kg) |
|
RS2-1800HB |
4.2x1.6x0.9 |
1.6x1.2 |
10-30 |
150-200 |
160/200 |
13000 |
|
RS2-1450HB |
4.2x1.6x0.9 |
1.32x1.1 |
8-20 |
150-200 |
160/200 |
11000 |
|
RS2-1100HB (160) |
3.6x1.3x0.95 |
1.3x0.85 |
6-12 |
150-200 |
160 |
6000 |
|
RS2-1100HB (90/132) |
3.9x1.3x0.46 |
1.3x0.85 |
3-6 |
150-200 |
90/132 |
6000 |
Note: The above data are standard configurations for typical models and can’t be taken as the only principle for type/model selection, and such facts as kind of wastes and their states, type of package, expected size after shredding etc. should also be taken into consideration, actual data are subject to adjustment according to specific requirements. More models and configurations are for inquiry and for face-to-face discussion.
