Product Description

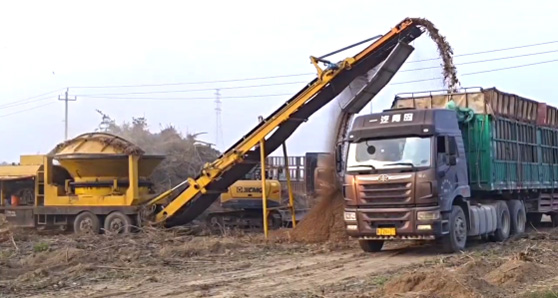

The mobile version of the TG series Tub Grinder is equipped with a diesel engine for outdoor use from site to site, usually accompanied by a truck for collecting of ground products.

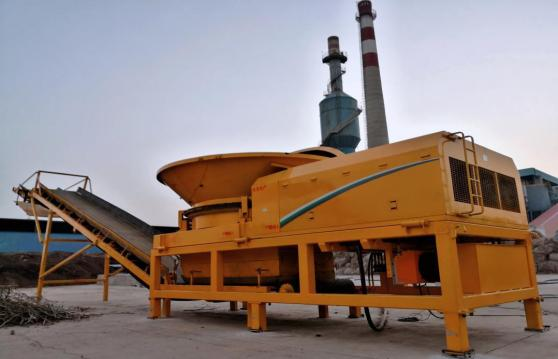

The stationary version of the TG series Tub Grinder is electric driven for mainly indoor or courtyard use.
 |
Overall Dim (LxMxH,m) |
Rotor Dia. (mm) |
Rotor Length (mm) |
Capacity (t/h) |
Size of Products (mm) |
Installed Power (kW) |
Weight (kg) |
|
|
TG-3600D |
11.1x2.35x3.6 |
670 |
2500 |
15-30 |
30-150 |
338/368/406 |
17000-18000 |
|
|
TG-3600E |
15.2x3.6x4.95 |
660 |
2150 |
15-30 |
30-150 |
250+30 |
15000-16000 |
|
Note: The above data are standard configurations for typical models and can’t be taken as the only principle for type/model selection, and such facts as kind of wastes and their states, type of package, expected size after shredding etc. should also be taken into consideration, actual data are subject to adjustment according to specific requirements. More models and configurations are for inquiry and for face-to-face discussion.
